PROFILE Cromoly Button/Hex HeadBolts

$x.xx

Login to view price

Product Information

Buttonhead bolts upgrade standard Profile 3/8 (10mm) bolts with a smooth, rounded finish.

• Sold in singles

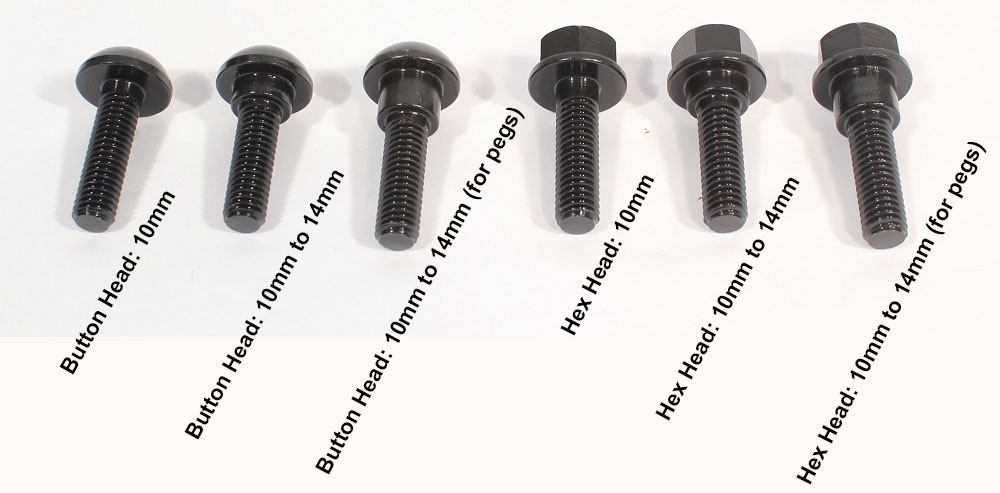

There are three versions of Button Head bolts available:
• A straight 3/8 (10mm) bolt, which will fit 3/8 drop-outs.
• The standard 3/8 (10mm) to 14mm dropouts version
• The peg version, which has a longer 14mm section that’s long enough for both a 14mm peg as well as a 14mm dropout.

There are two versions of Hex Head bolts available:
• A straight 3/8 (10mm) bolt, which will fit 3/8 drop-outs.
• The standard 3/8 (10mm) to 14mm dropouts version

Weight:
- Cromo 3/8 Button bolt: 33g/1.15oz each
- Cromo 3/8 to 14mm Button bolt: 36g/1.30oz each
- Cromo 3/8 Peg Bolt: 43g/1.5oz
- Cromo 3/8 17mm hex bolt: 37g/1.3oz
- Cromo 3/8 to 14mm hex bolt: 41g/1.4oz

*When installing the 14mm peg bolt, make sure the shoulder of the bolt does not protrude past the inside of the drop out. If it does, you might need to add additional washers (see alternative view for proper spacing). Failure to install this bolt properly will result in damage to your hub.

Product Code: 3016
